10.2.2 AES—The Advanced Encryption Standard

As DES started drawing nearer the end of its valuable life, even with triple DES, NIST (National Institute of Standards and Technology), the organization of the U.S. Dept. of Commerce accused of favoring principles for the U.S. Government, chose that the legislature required another cryptographic standard for unclassified use. NIST was distinctly mindful of all the contention encompassing DES and no doubt understood that on the off chance that it simply declared another standard, everybody knowing anything about cryptography would naturally expect that NSA had incorporated an indirect access with it so NSA could read everything encoded with it. Under these conditions, most likely nobody would utilize the standard and it would have kicked the bucket unobtrusively.

In this way, NIST took a shockingly diverse methodology for an administration organization: it supported a cryptographic prepare off (challenge). In January 1997, analysts from everywhere throughout the world were welcome to submit recommendations for another standard, to be called AES (Advanced Encryption Standard). The heats off standards were:

1.      The calculation must be a symmetric piece cipher.

2.      The full plan must be open.

3.      Key lengths of 128, 192, and 256 bits must be upheld.

4.      Both programming and equipment executions must be conceivable.

5.      The calculation must be open or authorized on nondiscriminatory terms.

Fifteen genuine recommendations were made, and open gatherings were sorted out in which they were introduced and participants were effectively urged to discover imperfections in every one of them. In August 1998, NIST chose five finalists, essentially on the premise of their security, effectiveness, effortlessness, adaptability, and memory necessities (imperative for inserted frameworks). More gatherings were held and more shots taken.

In October 2000, NIST declared that it had chosen Rijndael, by Joan Daemen and Vincent Rijmen. The name Rijndael, declared Rhine-doll (pretty much), is gotten from the last names of the creators: Rijmen + Daemen. In November 2001, Rijndael turned into the AES U.S. Government standard, distributed as FIPS (Federal Information Processing Standard) 197. Because of the remarkable openness of the opposition, the specialized properties of Rijndael, and the way that the triumphant group comprised of two youthful Belgian cryptographers (who were unrealistic to have worked in a secondary passage just to please NSA); Rijndael has turned into the world's prevailing cryptographic cipher. AES encryption and decoding is currently part of the guideline set for a few microchips (e.g., Intel).

Rijndael underpins key lengths and piece sizes from 128 bits to 256 bits in ventures of 32 bits. The key length and square length might be picked autonomously. Notwithstanding, AES indicates that the piece size must be 128 bits and the key length must be 128, 192, or 256 bits. It is far fetched that anybody will ever utilize 192-piece keys, so true, AES has two variations: a 128-piece obstruct with a 128-piece key and a 128-piece hinder with a 256-piece key.

In our treatment of the calculation, we will inspect just the 128/128 case since this is liable to wind up the business standard. A 128-piece key gives a key space of 2128 ~~ 3 ´ 1038 keys. Regardless of the fact that NSA figures out how to fabricate a machine with 1 billion parallel processors, each having the capacity to assess one key for every picosecond, it would take such a machine around 1010 years to seek the key space. By then the sun will have wore out, so the people then present will need to peruse the outcomes by candlelight.

Rijndael

From a scientific point of view, Rijndael depends on Galois field hypothesis, which gives it some provable security properties. Be that as it may, it can likewise be seen as C code, without getting into the science.

Like DES, Rijndael utilizes substitution and stages, and it likewise utilizes various rounds. The quantity of rounds relies on upon the key size and piece size, being 10 for 128-piece keys with 128-piece obstructs moving to 14 for the biggest key or the biggest square. Be that as it may, dissimilar to DES, all operations include whole bytes, to take into account productive usage in both equipment and programming. A blueprint of the code is given in Fig. 10-9. Note that this code is with the end goal of representation. Great usage of security code will take after extra practices, for example, focusing out touchy memory after it has been utilized. It couldn't be any more obvious, for instance, Ferguson et al. (2010).

Figure 10-9. A layout of Rijndael in C.

The capacity rijndael has three parameters. They are: plaintext, a variety of 16 bytes containing the info data; ciphertext, a variety of 16 bytes where the enciphered yield will be returned; and key, the 16-byte key. Amid the figuring, the present condition of the data is kept up in a byte cluster, express, whose size is NROWS × NCOLS. For 128-piece hinders, this cluster is 4 × 4 bytes. With 16 bytes, the full 128-piece data square can be put away.

The state exhibit is instated to the plaintext and changed by each progression in the calculation. In a few stages, byte-for-byte substitution is performed. In others, the bytes are permuted inside the exhibit. Different changes are likewise utilized. Toward the end, the substance of the state is returned as the ciphertext.

The code begins by extending the key into 11 varieties of the same size as the state. They are put away in rk, which is a variety of structs, each containing a state exhibit. One of these will be utilized toward the begin of the computation and the other 10 will be utilized amid the 10 rounds, one for every round. The estimation of the round keys from the encryption key is excessively entangled for us, making it impossible to get into here. Suffice it to say that the round keys are created by rehashed turn and XORing of different gatherings of key bits. For every one of the subtle elements, see Daemen and Rijmen (2002).

The following stride is to duplicate the plaintext into the state exhibit so it can be handled amid the rounds. It is replicated in segment request, with the initial 4 bytes going into segment 0, the following 4 bytes going into segment 1, etc. Both the segments and the lines are numbered beginning at 0, in spite of the fact that the rounds are numbered beginning at 1. This underlying setup of the 12 byte varieties of size 4 _× 4 is shown in Fig. 10-10.

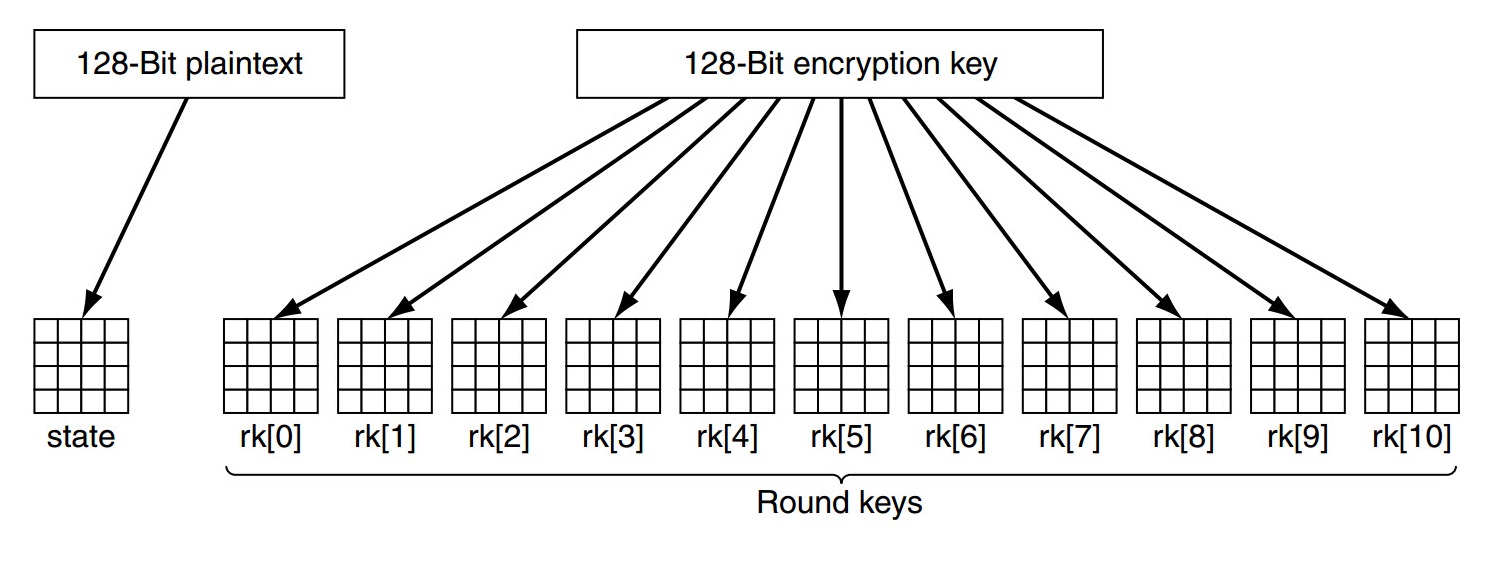

Figure 10-10. Making the state and rk clusters.

There is one more stride before the primary calculation starts: rk [0] is XORed into state, byte for byte. As such, each of the 16 bytes in state is supplanted by the XOR of itself and the relating byte in rk [0].

Presently it is the ideal opportunity for the primary fascination. The circle executes 10 emphases, one for each round, and changing state on every cycle. The substance of each round is delivered in four stages. Step 1 does a byte-for-byte substitution on state. Every byte thusly is utilized as a record into a S-box to supplant its worth by the substance of that S-box section. This progression is a straight mono-alphabetic substitution cipher. Dissimilar to DES, which has numerous S-boxes, Rijndael has one and only S-box.

Step 2 pivots each of the four columns to one side. Line 0 is turned 0 bytes (i.e., not changed), column 1 is pivoted 1 byte, line 2 is turned 2 bytes, and line 3 is turned 3 bytes. This progression diffuses the substance of the present data around the piece, undifferentiated from the stages of Fig. 10-6.

Step 3 stirs up every section freely of alternate ones. The blending is done utilizing framework duplication as a part of which the new segment is the result of the old segment and a consistent lattice, with the augmentation done utilizing the limited Galois field, GF (28). In spite of the fact that this may sound confounded, a calculation exists that permits every component of the new segment to be processed utilizing two table queries and three XORs (Daemen and Rijmen, 2002, Appendix E).

At long last, stride 4 XORs the key for this round into the state exhibit for use in the following round.

Since each progression is reversible, decoding should be possible just by running the calculation in reverse. Nonetheless, there is likewise a trap accessible in which decoding should be possible by running the encryption calculation utilizing distinctive tables.

The calculation has been outlined for awesome security, as well as for extraordinary velocity. A decent programming usage on a 2-GHz machine ought to have the capacity to accomplish an encryption rate of 700 Mbps, which is sufficiently quick to encode more than 100 MPEG-2 recordings progressively. Equipment usage is even quicker.
